Used for making cold wok tool steel of large cross section, complex shape, heavy shock loads and high abrasion resistance, such as: silicon steel dies, silk thread rolling dies, wire drawing dies and etc.
Product Details
Chemical Composition(%)
| Standard | Steel Grade | C | Si | Mn | P | S | Cr | Mo | V | W |
| DIN | 1.2436 | 2.00-2.25 | 0.10-0.40 | 0.15-0.45 | 0.030 | 0.030 | 11.0-12.0 | - | - | 0.60-0.80 |
| ASTM | D6 | - | - | - | - | - | - | - | - | - |
| GB | Cr12W | - | - | - | - | - | - | - | - | - |
Specification
| Round bar | Diameter | Length | - |

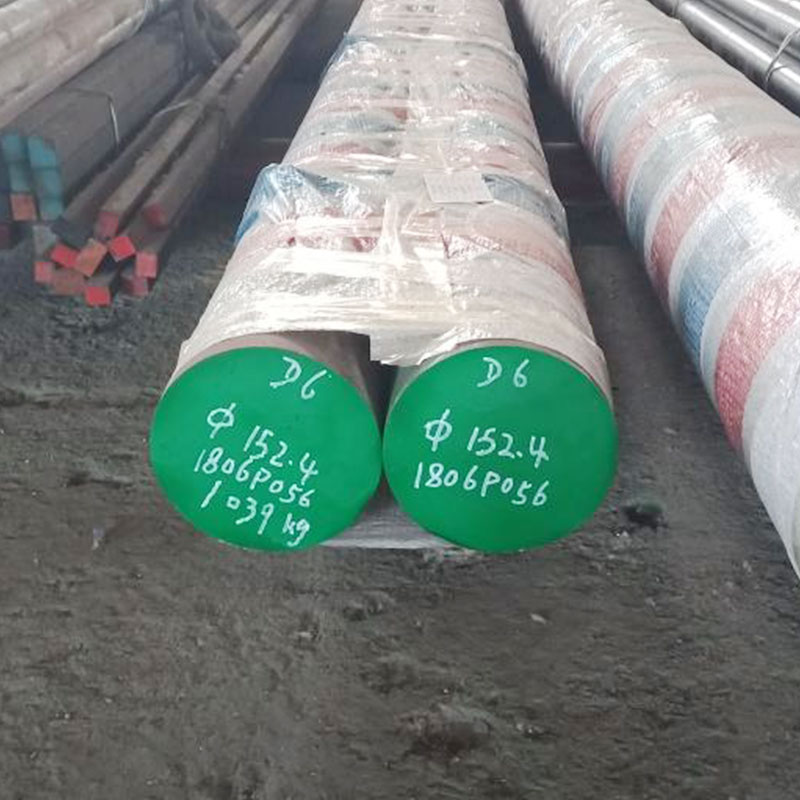

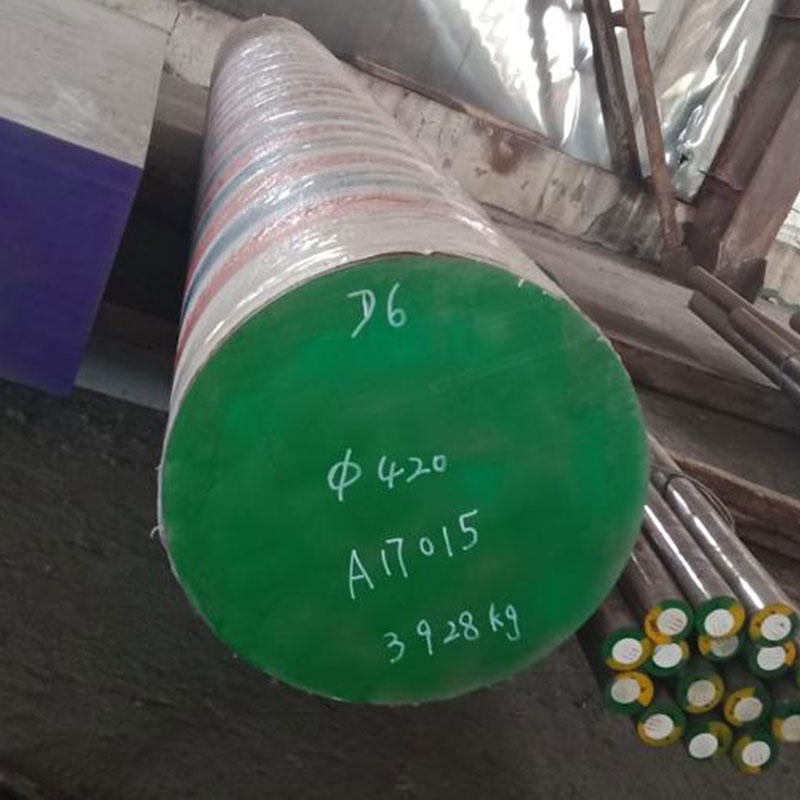

| Forged round bar: φ50~450 | 2000~6000 | - | |
| Rolled round bar: φ10~80 | 2000~6000 | - | |
| Flat bar | Thickness(mm) | Width(mm) | Length(mm) |

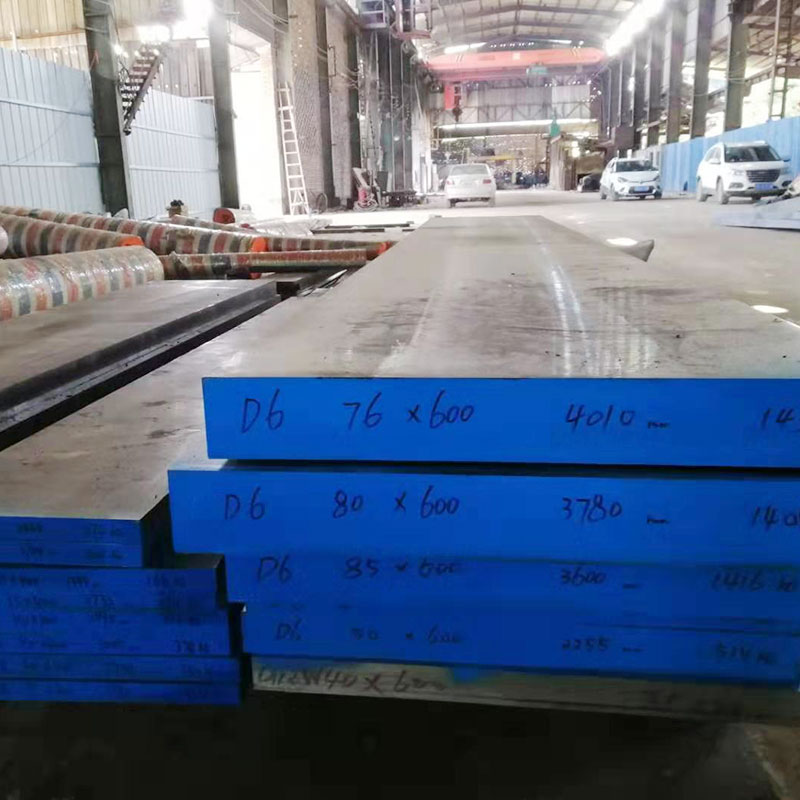

| Forged plate: 20~300 | 50~710 | 2000~6000 | |
| Rolled plate: 10~65 | 155~610 | 2000~6000 |
Characteristics and application:
A kind of cold work tool steel, belonging to Ledeburitic steel of high carbon, high chromium and high abrasion resistance;
With quite good hardenability, obdurability, abrasion resistance and small quenching distortion;
Used for making cold wok tool steel of large cross section, complex shape, heavy shock loads and high abrasion resistance, such as: silicon steel dies, silk thread rolling dies, wire drawing dies and etc.
Heat treatment regime
Quenching 960~980℃, oil cooling; Tempering 180℃±10℃.
Delivery condition and hardness
Annealing, hardness is bellow 255HBS.
